The Froude Number Calculator is a specialized tool designed to measure the influence of gravity on fluid motion in various environments. This dimensionless number plays a crucial role in predicting and analyzing the behavior of liquids and gases in motion, particularly in the fields of hydraulic engineering, naval architecture, and riverine and coastal engineering. Understanding the Froude number helps in designing efficient and safe structures by assessing wave resistance, flow regimes, and sediment transport.

## Formula of Froude Number Calculator

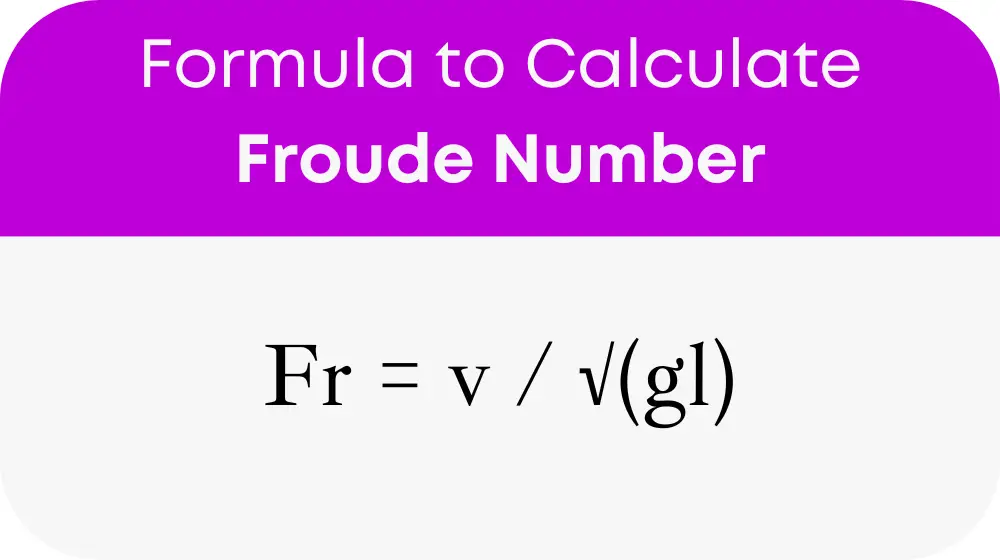

The formula to calculate the Froude number (Fr) is:

where:

`Fr`

– Froude number (no units)`v`

– velocity of the fluid (m/s)`g`

– acceleration due to gravity (typically 9.81 m/s²)`l`

– characteristic length (m)

The characteristic length (`l`

) can vary depending on the specific application. Here are some common examples:

- For ship performance:
`l`

= ship length - For open channel flow:
`l`

= hydraulic depth (area of the flow cross-section divided by the wetted perimeter)

## General Terms and Conversion Table

Froude Number (Fr) | Flow Regime | Characteristics |
---|---|---|

Fr < 1 | Subcritical Flow | – Streamlined flow with minimal wave formation on the water surface. – Gentle ripples or no visible waves might be present. |

Fr ≈ 1 | Critical Flow | – Transition zone between subcritical and supercritical flow. – Small waves might start to appear on the water surface. |

Fr > 1 | Supercritical Flow | – Flow characterized by the formation of waves on the water surface. – Wave height and prominence increase with higher Froude numbers. |

## Example of Froude Number Calculator

Consider a scenario where we need to calculate the Froude number for a ship moving at a speed of 7.5 meters per second, with a length of 30 meters. Using the formula provided, we substitute the values accordingly:

Fr = 7.5 / √(9.81*30)

By performing the calculation, users can determine the Froude number, which in turn helps in analyzing the ship’s performance under the influence of gravity, particularly in assessing its wave-making characteristics and overall efficiency in water.

## Most Common FAQs

**What is the significance of the Froude Number in engineering?**

The Froude Number is vital for predicting the flow regimes in open channels, assessing ship stability and performance, and designing hydraulic structures by understanding the effect of gravity on fluid dynamics.

**How do I choose the right characteristic length?**

The choice of characteristic length depends on the specific application. For ships, it’s typically the length of the ship, while for open channel flows, it’s the hydraulic depth.

**Can the Froude Number be greater than 1?**

Yes, a Froude Number greater than 1 indicates supercritical flow, where the fluid velocity exceeds the wave speed, leading to different flow behavior and wave patterns compared to subcritical flow (Fr < 1).
