The Flow Fraction Calculator helps determine how much of the total flow is contributed by each component or stream in a system. This is especially useful in fluid dynamics, chemical processing, HVAC systems, and multi-phase flow studies. Whether you’re managing water pipelines, gas mixtures, or air ducts, knowing the flow fraction gives insight into balance, system performance, and efficiency.
This calculator falls under the fluid mechanics and process engineering calculator category. It allows users to identify which part of the system is contributing most or least to the overall flow. This understanding helps in diagnostics, optimization, and compliance with flow distribution standards.

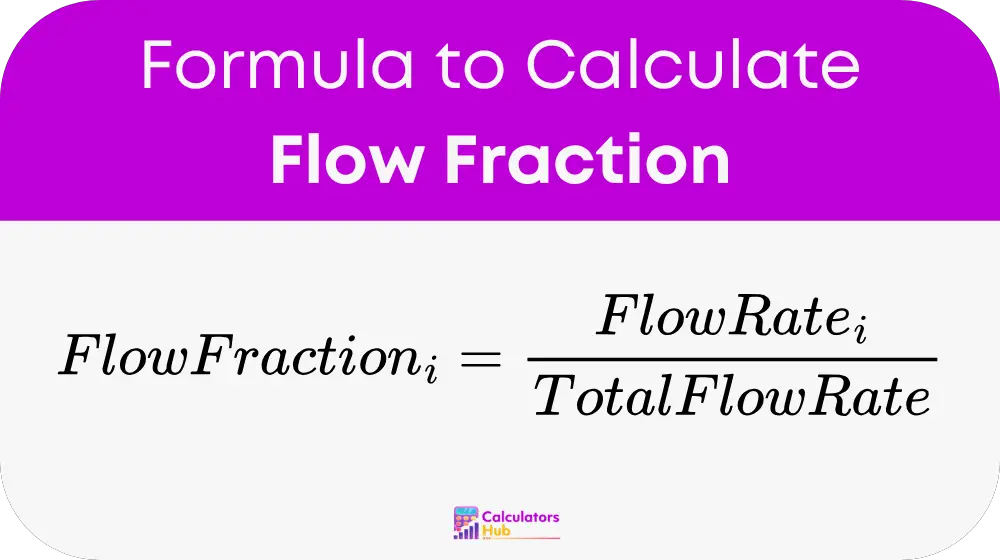

formula of Flow Fraction Calculator
Where:
Flow Fractionᵢ = Fraction of total flow for component i
Flow Rateᵢ = Flow rate of component i (e.g., L/min, m³/s)
Total Flow Rate = Sum of flow rates of all components or branches
The result is a dimensionless number between 0 and 1, or it can be expressed as a percentage by multiplying by 100.
Common Flow Fractions Reference Table
| Stream/Component | Flow Rate (L/min) | Total Flow Rate (L/min) | Flow Fraction | Flow Fraction (%) |
|---|---|---|---|---|
| Cooling Water Branch A | 50 | 200 | 0.25 | 25% |
| Cooling Water Branch B | 80 | 200 | 0.40 | 40% |
| Cooling Water Branch C | 70 | 200 | 0.35 | 35% |
| Air Stream 1 (HVAC) | 300 | 600 | 0.50 | 50% |
| Air Stream 2 (HVAC) | 300 | 600 | 0.50 | 50% |
This table helps users quickly interpret flow proportions without recalculating them manually.
Example of Flow Fraction Calculator
Let’s assume a chemical reactor has three fluid inputs:
- Stream A: 20 liters per minute
- Stream B: 35 liters per minute
- Stream C: 45 liters per minute
First, calculate the total flow:
Total Flow Rate = 20 + 35 + 45 = 100 L/min
Now, compute each stream’s flow fraction:
- Flow Fraction A = 20 / 100 = 0.20 (or 20%)
- Flow Fraction B = 35 / 100 = 0.35 (or 35%)
- Flow Fraction C = 45 / 100 = 0.45 (or 45%)
So, Stream C contributes the highest proportion to the total system flow.
Most Common FAQs
Flow fraction is used to understand the contribution of individual components in a fluid system. It helps in design, control, troubleshooting, and optimization of systems like pipelines, ducts, and chemical processes.
Yes, you can use it for any type of fluid — gas, liquid, or even multiphase flow — as long as you know the flow rate for each part of the system.
To convert a flow fraction into a percentage, multiply it by 100. For example, a flow fraction of 0.25 equals 25%.
