Flexural Modulus Calculator

Show Your Love:

The Flexural Modulus Calculator helps users determine the flexural modulus of a material based on measured inputs from a bending test. Flexural modulus, also known as the modulus of rupture or bending modulus, measures a material's stiffness when bent. It shows how much a material resists deformation under a bending load. This calculator is mainly used in materials science, structural engineering, product design, and quality control.

By entering the values for span length, applied force, width, height, and deflection, the calculator instantly gives the flexural modulus. It saves time and reduces the risk of manual errors, especially when handling large datasets or repeated calculations.

See also  Injectivity Calculator Online

The Flexural Modulus Calculator belongs to the mechanical property calculator category.

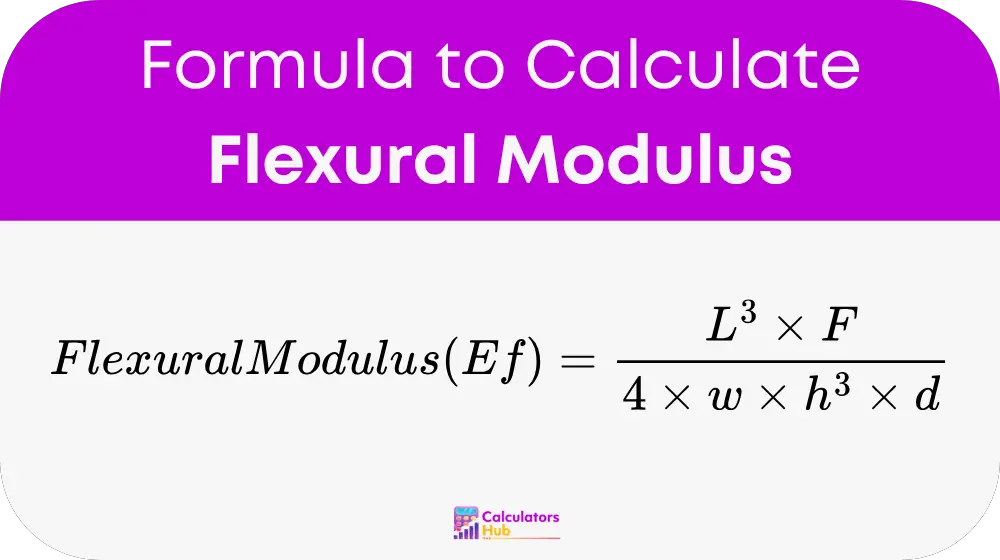

formula of Flexural Modulus Calculator

Flexural Modulus

Where:

Ef = Flexural modulus (in Pascals or psi)
L = Support span length (distance between supports) in meters or inches
F = Load applied at the midpoint (N or lb)
w = Width of the specimen (m or in)
h = Height (thickness) of the specimen (m or in)
d = Deflection at the midpoint due to load F (m or in)

Reference Table: Common Load and Deflection Values

Here is a helpful table that gives approximate flexural modulus values based on standard inputs. This is useful if you want a quick reference without calculating manually every time.

See also  Powder Coat Oven BTU Calculator Online
Span Length (L)Load (F)Width (w)Height (h)Deflection (d)Approx. Flexural Modulus (Ef)
0.2 m50 N0.02 m0.01 m0.005 m20.0 GPa
0.3 m80 N0.03 m0.015 m0.006 m18.5 GPa
0.25 m60 N0.025 m0.012 m0.0045 m21.3 GPa
0.15 m40 N0.015 m0.008 m0.003 m19.8 GPa
0.1 m20 N0.01 m0.005 m0.002 m16.0 GPa

These values are approximations and should not replace actual measurements in critical applications. Always use accurate test data for precise results.

Example of Flexural Modulus Calculator

Let’s go through a simple example to understand how the calculator works.

Given:

  • Span length (L) = 0.2 m
  • Load at midpoint (F) = 50 N
  • Width of the specimen (w) = 0.02 m
  • Height of the specimen (h) = 0.01 m
  • Deflection at midpoint (d) = 0.005 m
See also  Pump Discharge Pressure Calculator Online

Apply the formula:

Ef = (0.2³ × 50) / (4 × 0.02 × 0.01³ × 0.005)
Ef = (0.008 × 50) / (4 × 0.02 × 0.000001 × 0.005)
Ef = 0.4 / (4 × 0.02 × 0.000001 × 0.005)
Ef = 0.4 / 0.0000000004
Ef = 1,000,000,000 Pa or 1.0 GPa

So, the flexural modulus of the material is approximately 1.0 GPa.

Most Common FAQs

What is the flexural modulus used for?

The flexural modulus is used to measure the stiffness of a material when it is bent. It helps engineers and designers choose the right material for applications that involve bending or flexing.

Can I use this calculator for any material?

Yes, as long as you have the correct values for span length, force, width, height, and deflection, you can use this calculator for plastics, metals, wood, and more.

Is the flexural modulus the same as the tensile modulus?

No, flexural modulus measures stiffness during bending, while tensile modulus measures stiffness during stretching. Both are important but used in different testing conditions.
