The Effective Case Depth Calculator is a specialized tool used in metallurgy and heat treatment processes to estimate how deeply a hardening element like carbon or nitrogen has penetrated the surface of a metal part during thermal processing. It is especially useful in methods like carburizing and nitriding, where surface properties such as hardness, wear resistance, and fatigue strength are improved.
This calculator belongs to the Metallurgy and Materials Engineering Calculators category.
It allows engineers and technicians to estimate the effective case depth based on treatment time and process conditions. This is critical in quality control, material selection, and ensuring parts meet performance specifications in industries such as automotive, aerospace, and manufacturing.

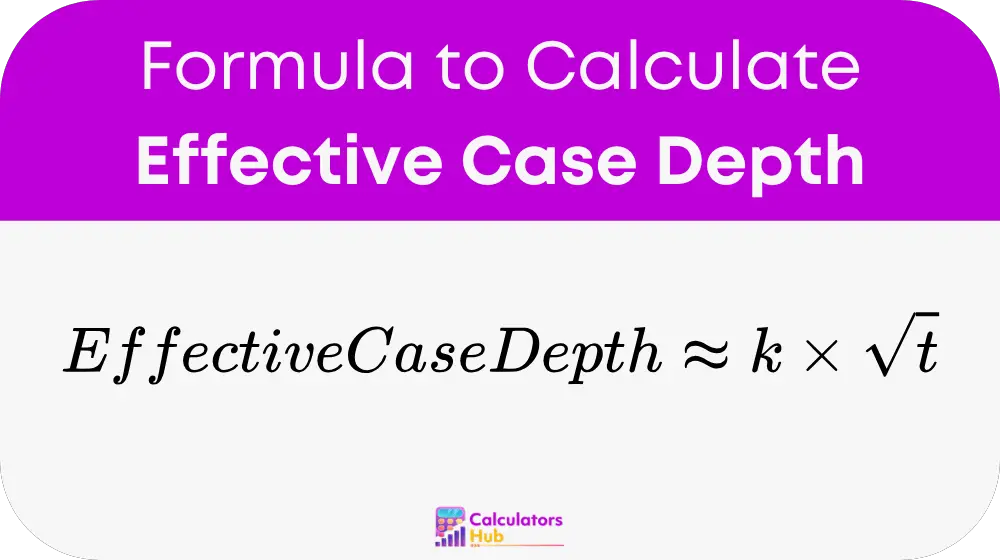

formula of Effective Case Depth Calculator
Estimating Case Depth During Heat Treatment (Diffusion-Based Approximation for Carburizing):
Detailed Explanation of Variables:
Effective Case Depth:
This is the depth below the surface where the hardness or concentration of the diffused element (like carbon) meets a defined threshold, typically measured in millimeters (mm). It represents the useful hardened layer of the material.
k:
This is a diffusion constant that varies based on the material type, temperature, and diffusing element. It is generally sourced from material datasheets or experimental studies. Units are usually in mm/sqrt(hour) or mm/sqrt(second).
t:
This is the exposure time of the component in the heat treatment process. It must match the unit used for k, typically measured in hours or seconds.
sqrt:
This represents the square root function, based on the principle that diffusion depth grows proportionally with the square root of time, following Fick’s Second Law.
This formula is widely used for estimating case depth in processes like:
- Gas carburizing
- Nitriding
- Carbonitriding
Reference Table for Case Depth Estimation
| Material Type | k (mm/√hr) | Time (hr) | Estimated Case Depth (mm) |
|---|---|---|---|
| Low Carbon Steel | 0.45 | 1 | 0.45 |
| Low Carbon Steel | 0.45 | 4 | 0.90 |
| Alloy Steel | 0.35 | 6 | 0.86 |
| Stainless Steel | 0.25 | 9 | 0.75 |
| Medium Carbon Steel | 0.30 | 16 | 1.20 |
This table gives a quick estimate for common combinations without needing to do the math every time.
Example of Effective Case Depth Calculator
Let’s estimate the effective case depth for a low carbon steel part undergoing carburizing for 9 hours.
Given:
- k = 0.45 mm/√hr
- t = 9 hours
Step-by-step Calculation:
Effective Case Depth = 0.45 * sqrt(9)
Effective Case Depth = 0.45 * 3 = 1.35 mm
Result:
The effective case depth is 1.35 mm.
Most Common FAQs
A: The diffusion of elements like carbon or nitrogen into metals follows a parabolic pattern, as described by Fick’s Second Law. This means the depth increases slower over time, hence the square root relationship.
A: Yes, the same principle applies. Just make sure you use the correct k-value specific to the nitriding process and material.
A: You can refer to heat treatment handbooks, metallurgical reference tables, or experimental data provided by material suppliers or research papers.
